+<p align="center">
+<img src="src/frontend/static/icons/Hipster_HeroLogoCyan.svg" width="300"/>
+</p>
+
+
+
+**Online Boutique** is a cloud-native microservices demo application.
+Online Boutique consists of a 10-tier microservices application. The application is a
+web-based e-commerce app where users can browse items,
+add them to the cart, and purchase them.
+
+**Google uses this application to demonstrate use of technologies like
+Kubernetes/GKE, Istio, Stackdriver, gRPC and OpenCensus**. This application
+works on any Kubernetes cluster (such as a local one), as well as Google
+Kubernetes Engine. It’s **easy to deploy with little to no configuration**.
+
+If you’re using this demo, please **★Star** this repository to show your interest!
+

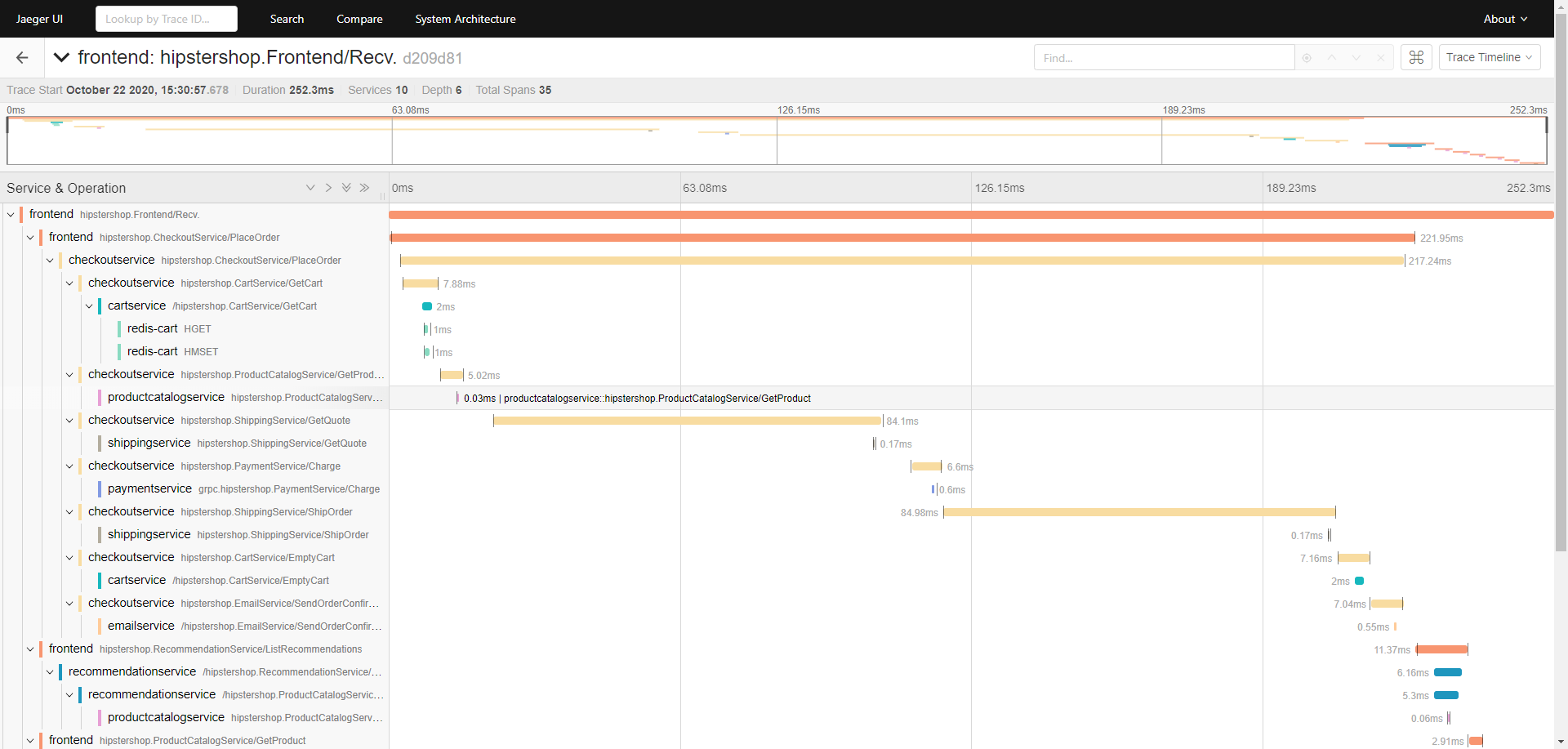

+## Tracing Module
+We instrument OpenTelemetry API for each service to equip tracing ability for Hipster-Shop.
+[![trace result](./docs/img/tracing.png)](./docs/img/tracing.png)
+

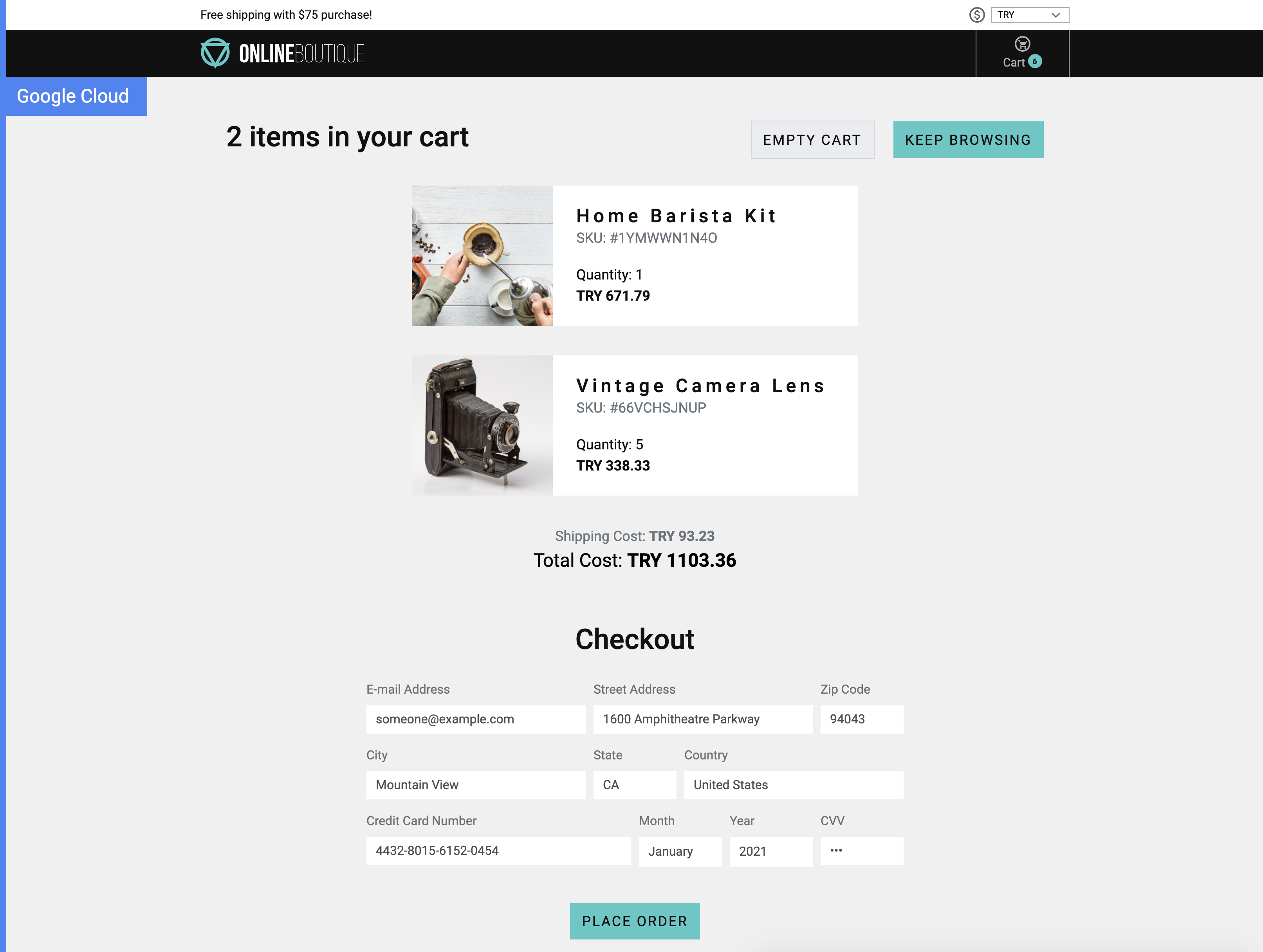

+## Screenshots
+
+| Home Page                                                                                                         | Checkout Screen                                                                                                    |
+| ----------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------ |
+| [![Screenshot of store homepage](./docs/img/online-boutique-frontend-1.png)](./docs/img/online-boutique-frontend-1.png) | [![Screenshot of checkout screen](./docs/img/online-boutique-frontend-2.png)](./docs/img/online-boutique-frontend-2.png) |
+
+## Service Architecture
+
+**Online Boutique** is composed of many microservices written in different
+languages that talk to each other over gRPC.
+
+[![Architecture of
+microservices](./docs/img/architecture-diagram.png)](./docs/img/architecture-diagram.png)
+
+Find **Protocol Buffers Descriptions** at the [`./pb` directory](./pb).
+
+| Service                                              | Language      | Description                                                                                                                       |
+| ---------------------------------------------------- | ------------- | --------------------------------------------------------------------------------------------------------------------------------- |
+| [frontend](./src/frontend)                           | Go            | Exposes an HTTP server to serve the website. Does not require signup/login and generates session IDs for all users automatically. |
+| [cartservice](./src/cartservice)                     | C#            | Stores the items in the user's shopping cart in Redis and retrieves it.                                                           |
+| [productcatalogservice](./src/productcatalogservice) | Go            | Provides the list of products from a JSON file and ability to search products and get individual products.                        |
+| [currencyservice](./src/currencyservice)             | Node.js       | Converts one money amount to another currency. Uses real values fetched from European Central Bank. It's the highest QPS service. |
+| [paymentservice](./src/paymentservice)               | Node.js       | Charges the given credit card info (mock) with the given amount and returns a transaction ID.                                     |
+| [shippingservice](./src/shippingservice)             | Go            | Gives shipping cost estimates based on the shopping cart. Ships items to the given address (mock)                                 |
+| [emailservice](./src/emailservice)                   | Python        | Sends users an order confirmation email (mock).                                                                                   |
+| [checkoutservice](./src/checkoutservice)             | Go            | Retrieves user cart, prepares order and orchestrates the payment, shipping and the email notification.                            |
+| [recommendationservice](./src/recommendationservice) | Python        | Recommends other products based on what's given in the cart.                                                                      |
+| [adservice](./src/adservice)                         | Java          | Provides text ads based on given context words.                                                                                   |
+| [loadgenerator](./src/loadgenerator)                 | Python/Locust | Continuously sends requests imitating realistic user shopping flows to the frontend.                                              |
+
+## Features
+
+- **[Kubernetes](https://kubernetes.io)/[GKE](https://cloud.google.com/kubernetes-engine/):**
+  The app is designed to run on Kubernetes (both locally on "Docker for
+  Desktop", as well as on the cloud with GKE).
+- **[gRPC](https://grpc.io):** Microservices use a high volume of gRPC calls to
+  communicate to each other.
+- **[Istio](https://istio.io):** Application works on Istio service mesh.
+- **[OpenCensus](https://opencensus.io/) Tracing:** Most services are
+  instrumented using OpenCensus trace interceptors for gRPC/HTTP.
+- **[Stackdriver APM](https://cloud.google.com/stackdriver/):** Many services
+  are instrumented with **Profiling**, **Tracing** and **Debugging**. In
+  addition to these, using Istio enables features like Request/Response
+  **Metrics** and **Context Graph** out of the box. When it is running out of
+  Google Cloud, this code path remains inactive.
+- **[Skaffold](https://skaffold.dev):** Application
+  is deployed to Kubernetes with a single command using Skaffold.
+- **Synthetic Load Generation:** The application demo comes with a background
+  job that creates realistic usage patterns on the website using
+  [Locust](https://locust.io/) load generator.
+
+## Installation
+
+We offer the following installation methods:
+
+1. **Running locally** (~20 minutes) You will build
+   and deploy microservices images to a single-node Kubernetes cluster running
+   on your development machine. There are three options to run a Kubernetes
+   cluster locally for this demo:
+   - [Minikube](https://github.com/kubernetes/minikube). Recommended for
+     Linux hosts (also supports Mac/Windows).
+   - [Docker for Desktop](https://www.docker.com/products/docker-desktop).
+     Recommended for Mac/Windows.
+   - [Kind](https://kind.sigs.k8s.io). Supports Mac/Windows/Linux.
+
+1. **Running on Google Kubernetes Engine (GKE)”** (~30 minutes) You will build,
+   upload and deploy the container images to a Kubernetes cluster on Google
+   Cloud.
+
+1. **Using pre-built container images:** (~10 minutes, you will still need to
+   follow one of the steps above up until `skaffold run` command). With this
+   option, you will use pre-built container images that are available publicly,
+   instead of building them yourself, which takes a long time).
+
+### Prerequisites
+
+   - kubectl (can be installed via `gcloud components install kubectl`)
+   - Local Kubernetes cluster deployment tool:
+        - [Minikube (recommended for
+         Linux)](https://kubernetes.io/docs/setup/minikube/)
+        - [Docker for Desktop (recommended for Mac/Windows)](https://www.docker.com/products/docker-desktop)
+          - It provides Kubernetes support as [noted
+     here](https://docs.docker.com/docker-for-mac/kubernetes/)
+        - [Kind](https://github.com/kubernetes-sigs/kind)
+   - [skaffold]( https://skaffold.dev/docs/install/) ([ensure version ≥v1.10](https://github.com/GoogleContainerTools/skaffold/releases))
+   - Enable GCP APIs for Cloud Monitoring, Tracing, Debugger:
+    ```
+    gcloud services enable monitoring.googleapis.com \
+      cloudtrace.googleapis.com \
+      clouddebugger.googleapis.com
+    ```
+
+### Option 1: Running locally
+
+> 💡 Recommended if you're planning to develop the application or giving it a
+> try on your local cluster.
+
+1. Launch a local Kubernetes cluster with one of the following tools:
+
+    - To launch **Minikube** (tested with Ubuntu Linux). Please, ensure that the
+       local Kubernetes cluster has at least:
+        - 4 CPU's
+        - 4.0 GiB memory
+        - 32 GB disk space
+
+      ```shell
+      minikube start --cpus=4 --memory 4096 --disk-size 32g
+      ```
+
+    - To launch **Docker for Desktop** (tested with Mac/Windows). Go to Preferences:
+        - choose “Enable Kubernetes”,
+        - set CPUs to at least 3, and Memory to at least 6.0 GiB
+        - on the "Disk" tab, set at least 32 GB disk space
+
+    - To launch a **Kind** cluster:
+
+      ```shell
+      kind create cluster
+      ```
+
+2. Run `kubectl get nodes` to verify you're connected to “Kubernetes on Docker”.
+
+3. Run `skaffold run` (first time will be slow, it can take ~20 minutes).
+   This will build and deploy the application. If you need to rebuild the images
+   automatically as you refactor the code, run `skaffold dev` command.
+
+4. Run `kubectl get pods` to verify the Pods are ready and running.
+
+5. Access the web frontend through your browser
+    - **Minikube** requires you to run a command to access the frontend service:
+
+    ```shell
+    minikube service frontend-external
+    ```
+
+    - **Docker For Desktop** should automatically provide the frontend at http://localhost:80
+
+    - **Kind** does not provision an IP address for the service.
+      You must run a port-forwarding process to access the frontend at http://localhost:8080:
+
+    ```shell
+    kubectl port-forward deployment/frontend 8080:8080
+    ```
+
+### Option 2: Running on Google Kubernetes Engine (GKE)
+
+> 💡 Recommended if you're using Google Cloud Platform and want to try it on
+> a realistic cluster.
+
+1.  Create a Google Kubernetes Engine cluster and make sure `kubectl` is pointing
+    to the cluster.
+
+    ```sh
+    gcloud services enable container.googleapis.com
+    ```
+
+    ```sh
+    gcloud container clusters create demo --enable-autoupgrade \
+        --enable-autoscaling --min-nodes=3 --max-nodes=10 --num-nodes=5 --zone=us-central1-a
+    ```
+
+    ```
+    kubectl get nodes
+    ```
+
+2.  Enable Google Container Registry (GCR) on your GCP project and configure the
+    `docker` CLI to authenticate to GCR:
+
+    ```sh
+    gcloud services enable containerregistry.googleapis.com
+    ```
+
+    ```sh
+    gcloud auth configure-docker -q
+    ```
+
+3.  In the root of this repository, run `skaffold run --default-repo=gcr.io/[PROJECT_ID]`,
+    where [PROJECT_ID] is your GCP project ID.
+
+    This command:
+
+    - builds the container images
+    - pushes them to GCR
+    - applies the `./kubernetes-manifests` deploying the application to
+      Kubernetes.
+
+    **Troubleshooting:** If you get "No space left on device" error on Google
+    Cloud Shell, you can build the images on Google Cloud Build: [Enable the
+    Cloud Build
+    API](https://console.cloud.google.com/flows/enableapi?apiid=cloudbuild.googleapis.com),
+    then run `skaffold run -p gcb --default-repo=gcr.io/[PROJECT_ID]` instead.
+
+4.  Find the IP address of your application, then visit the application on your
+    browser to confirm installation.
+
+        kubectl get service frontend-external
+
+    **Troubleshooting:** A Kubernetes bug (will be fixed in 1.12) combined with
+    a Skaffold [bug](https://github.com/GoogleContainerTools/skaffold/issues/887)
+    causes load balancer to not to work even after getting an IP address. If you
+    are seeing this, run `kubectl get service frontend-external -o=yaml | kubectl apply -f-`
+    to trigger load balancer reconfiguration.
+
+### Option 3: Using Pre-Built Container Images
+
+> 💡 Recommended if you want to deploy the app faster in fewer steps to an
+> existing cluster.
+
+**NOTE:** If you need to create a Kubernetes cluster locally or on the cloud,
+follow "Option 1" or "Option 2" until you reach the `skaffold run` step.
+
+This option offers you pre-built public container images that are easy to deploy
+by deploying the [release manifest](./release) directly to an existing cluster.
+
+**Prerequisite**: a running Kubernetes cluster (either local or on cloud).
+
+1. Clone this repository, and go to the repository directory
+1. Run `kubectl apply -f ./release/kubernetes-manifests.yaml` to deploy the app.
+1. Run `kubectl get pods` to see pods are in a Ready state.
+1. Find the IP address of your application, then visit the application on your
+   browser to confirm installation.
+
+   ```sh
+   kubectl get service/frontend-external
+   ```
+
+### Option 4: Deploying on a Istio-enabled GKE cluster
+
+> **Note:** if you followed GKE deployment steps above, run `skaffold delete` first to delete what's deployed.
+
+1. Create a GKE cluster (described in "Option 2").
+
+2. Use the [Istio on GKE add-on](https://cloud.google.com/istio/docs/istio-on-gke/installing)
+   to install Istio to your existing GKE cluster.
+
+   ```sh
+   gcloud beta container clusters update demo \
+       --zone=us-central1-a \
+       --update-addons=Istio=ENABLED \
+       --istio-config=auth=MTLS_PERMISSIVE
+   ```
+
+3. (Optional) Enable Stackdriver Tracing/Logging with Istio Stackdriver Adapter
+   by [following this guide](https://cloud.google.com/istio/docs/istio-on-gke/installing#enabling_tracing_and_logging).
+
+4. Install the automatic sidecar injection (annotate the `default` namespace
+   with the label):
+
+   ```sh
+   kubectl label namespace default istio-injection=enabled
+   ```
+
+5. Apply the manifests in [`./istio-manifests`](./istio-manifests) directory.
+   (This is required only once.)
+
+   ```sh
+   kubectl apply -f ./istio-manifests
+   ```
+
+6. In the root of this repository, run `skaffold run --default-repo=gcr.io/[PROJECT_ID]`,
+    where [PROJECT_ID] is your GCP project ID.
+
+    This command:
+
+    - builds the container images
+    - pushes them to GCR
+    - applies the `./kubernetes-manifests` deploying the application to
+      Kubernetes.
+
+    **Troubleshooting:** If you get "No space left on device" error on Google
+    Cloud Shell, you can build the images on Google Cloud Build: [Enable the
+    Cloud Build
+    API](https://console.cloud.google.com/flows/enableapi?apiid=cloudbuild.googleapis.com),
+    then run `skaffold run -p gcb --default-repo=gcr.io/[PROJECT_ID]` instead.
+
+7. Run `kubectl get pods` to see pods are in a healthy and ready state.
+
+8. Find the IP address of your Istio gateway Ingress or Service, and visit the
+   application.
+
+   ```sh
+   INGRESS_HOST="$(kubectl -n istio-system get service istio-ingressgateway \
+      -o jsonpath='{.status.loadBalancer.ingress[0].ip}')"
+   echo "$INGRESS_HOST"
+   ```
+
+   ```sh
+   curl -v "http://$INGRESS_HOST"
+   ```
+
+### Cleanup
+
+If you've deployed the application with `skaffold run` command, you can run
+`skaffold delete` to clean up the deployed resources.
+
+If you've deployed the application with `kubectl apply -f [...]`, you can
+run `kubectl delete -f [...]` with the same argument to clean up the deployed
+resources.
+
+## Conferences featuring Online Boutique
+
+- [Google Cloud Next'18 London – Keynote](https://youtu.be/nIq2pkNcfEI?t=3071)
+  showing Stackdriver Incident Response Management
+- Google Cloud Next'18 SF
+  - [Day 1 Keynote](https://youtu.be/vJ9OaAqfxo4?t=2416) showing GKE On-Prem
+  - [Day 3 – Keynote](https://youtu.be/JQPOPV_VH5w?t=815) showing Stackdriver
+    APM (Tracing, Code Search, Profiler, Google Cloud Build)
+  - [Introduction to Service Management with Istio](https://www.youtube.com/watch?v=wCJrdKdD6UM&feature=youtu.be&t=586)
+- [KubeCon EU 2019 - Reinventing Networking: A Deep Dive into Istio's Multicluster Gateways - Steve Dake, Independent](https://youtu.be/-t2BfT59zJA?t=982)
+
+---
+
+This is not an official Google project.

cloudbuild.yaml

+# This configuration file is used to build and deploy the app into a
+# GKE cluster using Google Cloud Build.
+#
+# PREREQUISITES:
+# - Cloud Build service account must have role: "Kubernetes Engine Developer"
+
+# USAGE:
+# GCP zone and GKE target cluster must be specified as substitutions
+# Example invocation:
+# `gcloud builds submit --config=cloudbuild.yaml --substitutions=_ZONE=us-central1-b,_CLUSTER=demo-app-staging .`
+
+steps:
+- id: 'Deploy application to cluster'
+  name: 'gcr.io/k8s-skaffold/skaffold:v0.20.0'
+  entrypoint: 'bash'
+  args:
+  - '-c'
+  - >
+    gcloud container clusters get-credentials --zone=$_ZONE $_CLUSTER;
+    skaffold run -f=skaffold.yaml --default-repo=gcr.io/$PROJECT_ID;
+
+# Add more power, and more time, for heavy Skaffold build
+timeout: '3600s'
+options:
+  machineType: 'N1_HIGHCPU_8'
\ No newline at end of file

db/.hipster.sql

+CREATE TABLE IF NOT EXISTS `product`(
+   `id` VARCHAR(100) NOT NULL COMMENT '唯一不重复',
+   `name` VARCHAR(100) NOT NULL,
+   `description` VARCHAR(200) NOT NULL,
+   `picture` VARCHAR(512) CHARACTER SET 'ascii' COLLATE 'ascii_general_ci' NOT NULL,
+   `priceUsd` JSON,
+   `categories` JSON,
+   PRIMARY KEY ( `id` )
+)ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+   'L9ECAV7KIM',
+   'Terrarium',
+   'This terrarium will looks great in your white painted living room.',
+   '/static/img/products/terrarium.jpg',
+   '{"currencyCode":"USD","units":36,"nanos":450000000}',
+   '["gardening"]'
+);
+
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+ 'OLJCESPC7Z',
+ 'Vintage Typewriter',
+ 'This typewriter looks good in your living room.',
+ '/static/img/products/typewriter.jpg',
+ '{"currencyCode": "USD", "units": 67, "nanos": 990000000}',
+ '["vintage"]'
+);
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+ '66VCHSJNUP',
+ 'Vintage Camera Lens',
+ 'You won't have a camera to use it and it probably doesn't work anyway.',
+ '/static/img/products/camera-lens.jpg',
+ '{"currencyCode": "USD", "units": 12, "nanos": 490000000}',
+ '["photography", "vintage"]'
+);
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+ '1YMWWN1N4O',
+ 'Home Barista Kit',
+ 'Always wanted to brew coffee with Chemex and Aeropress at home?',
+ '/static/img/products/barista-kit.jpg',
+ '{"currencyCode": "USD", "units": 124}',
+ '["cookware"]'
+);
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+ 'L9ECAV7KIM',
+ 'Terrarium',
+ 'This terrarium will looks great in your white painted living room.',
+ '/static/img/products/terrarium.jpg',
+ '{"currencyCode": "USD", "units": 36, "nanos": 450000000}',
+ '["gardening"]'
+);
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+ '2ZYFJ3GM2N',
+ 'Film Camera',
+ 'This camera looks like it's a film camera, but it's actually digital.',
+ '/static/img/products/film-camera.jpg',
+ '{"currencyCode": "USD", "units": 2245}',
+ '["photography", "vintage"]'
+);
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+ '0PUK6V6EV0',
+ 'Vintage Record Player',
+ 'It still works.',
+ '/static/img/products/record-player.jpg',
+ '{"currencyCode": "USD", "units": 65, "nanos": 500000000}',
+ '["music", "vintage"]'
+);
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+ 'LS4PSXUNUM',
+ 'Metal Camping Mug',
+ "You probably don't go camping that often but this is better than plastic cups.",
+ '/static/img/products/camp-mug.jpg',
+ '{"currencyCode": "USD", "units": 24, "nanos": 330000000}',
+ '["cookware"]'
+);
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+ '9SIQT8TOJO',
+ 'City Bike',
+ 'This single gear bike probably cannot climb the hills of San Francisco.',
+ '/static/img/products/city-bike.jpg',
+ '{"currencyCode": "USD", "units": 789, "nanos": 500000000}',
+ '["cycling"]'
+);
+INSERT INTO product
+(`id`, `name`, `description`, `picture`, `priceUsd`, `categories`)
+VALUES (
+ '6E92ZMYYFZ',
+ 'Air Plant',
+ 'Have you ever wondered whether air plants need water? Buy one and figure out.',
+ '/static/img/products/air-plant.jpg',
+ '{"currencyCode": "USD", "units": 12, "nanos": 300000000}',
+ '["gardening"]'
+);
+----------------------------------------------------------------

db/init_mysql.sql

+CREATE DATABASE addatabase;
+use addatabase;
+
+CREATE TABLE aditems(
+    item_name VARCHAR(40) NOT NULL,
+    redirect_url VARCHAR(100) NOT NULL,
+    text VARCHAR(100) NOT NULL,
+    PRIMARY KEY ( item_name )
+    )ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+INSERT INTO aditems
+    (item_name, redirect_url, text)
+    VALUES
+    ("camera", "/product/2ZYFJ3GM2N", "Film camera for sale. 50% off.");
+
+INSERT INTO aditems
+    (item_name, redirect_url, text)
+    VALUES
+    ("lens", "/product/66VCHSJNUP", "Vintage camera lens for sale. 20% off.");
+
+INSERT INTO aditems
+    (item_name, redirect_url, text)
+    VALUES
+    ("recordPlayer", "/product/0PUK6V6EV0", "Vintage record player for sale. 30% off.");
+
+INSERT INTO aditems
+    (item_name, redirect_url, text)
+    VALUES
+    ("bike", "/product/9SIQT8TOJO", "City Bike for sale. 10% off.");
+
+INSERT INTO aditems
+    (item_name, redirect_url, text)
+    VALUES
+    ("baristaKit", "/product/1YMWWN1N4O", "Home Barista kitchen kit for sale. Buy one, get second kit for free");
+
+INSERT INTO aditems
+    (item_name, redirect_url, text)
+    VALUES
+    ("airPlant", "/product/6E92ZMYYFZ", "Air plants for sale. Buy two, get third one for free");
+
+INSERT INTO aditems
+    (item_name, redirect_url, text)
+    VALUES
+    ("terrarium", "/product/L9ECAV7KIM", "Terrarium for sale. Buy one, get second one for free");
+
+# product db
+CREATE DATABASE Productdb;
+use Productdb;
+
+
+CREATE TABLE products(
+    product_id VARCHAR(40) NOT NULL,
+    item_name VARCHAR(40) NOT NULL,
+    description VARCHAR(100) NOT NULL,
+    picture_path VARCHAR(100) NOT NULL,
+    categorise_list VARCHAR(100) NOT NULL,
+    PRIMARY KEY ( product_id )
+    )ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+CREATE TABLE price(
+    product_id VARCHAR(40) NOT NULL,
+    currencyCode VARCHAR(10) NOT NULL,
+    units INT NOT NULL,
+    nanos INT,
+    PRIMARY KEY (product_id)
+)ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+
+INSERT INTO products
+    (product_id, item_name, description, picture_path, categorise_list)
+    VALUES
+    ("OLJCESPC7Z", "Vintage Typewriter", "This typewriter looks good in your living room.", "/static/img/products/typewriter.jpg", "vintage");
+
+INSERT INTO price
+    (product_id, currencyCode, units, nanos)
+    VALUES
+    ("OLJCESPC7Z", "USD", 67, 990000000);
+
+
+INSERT INTO products
+    (product_id, item_name, description, picture_path, categorise_list)
+    VALUES
+    ("66VCHSJNUP", "Antique Camera", "It probably doesn't work anyway.", "/static/img/products/camera-lens.jpg", "photography;vintage");
+
+INSERT INTO price
+    (product_id, currencyCode, units, nanos)
+    VALUES
+    ("66VCHSJNUP", "USD", 12, 490000000);
+
+
+INSERT INTO products
+    (product_id, item_name, description, picture_path, categorise_list)
+    VALUES
+    ("1YMWWN1N4O", "Home Barista Kit", "Always wanted to brew coffee with Chemex and Aeropress at home?", "/static/img/products/barista-kit.jpg", "cookware");
+
+INSERT INTO price
+    (product_id, currencyCode, units, nanos)
+    VALUES
+    ("1YMWWN1N4O", "USD", 124, 0);
+
+
+INSERT INTO products
+    (product_id, item_name, description, picture_path, categorise_list)
+    VALUES
+    ("L9ECAV7KIM", "Terrarium", "This terrarium will looks great in your white painted living room.", "/static/img/products/terrarium.jpg", "gardening");
+
+INSERT INTO price
+    (product_id, currencyCode, units, nanos)
+    VALUES
+    ("L9ECAV7KIM", "USD", 36, 450000000);
+
+INSERT INTO products
+    (product_id, item_name, description, picture_path, categorise_list)
+    VALUES
+    ("2ZYFJ3GM2N", "Film Camera", "This camera looks like it's a film camera, but it's actually digital.", "/static/img/products/film-camera.jpg", "photography;vintage");
+
+INSERT INTO price
+    (product_id, currencyCode, units, nanos)
+    VALUES
+    ("2ZYFJ3GM2N", "USD", 2245, 0);
+
+INSERT INTO products
+    (product_id, item_name, description, picture_path, categorise_list)
+    VALUES
+    ("0PUK6V6EV0", "Vintage Record Player", "It still works.", "/static/img/products/record-player.jpg", "music;vintage");
+
+INSERT INTO price
+    (product_id, currencyCode, units, nanos)
+    VALUES
+    ("0PUK6V6EV0", "USD", 65, 500000000);
+
+
+INSERT INTO products
+    (product_id, item_name, description, picture_path, categorise_list)
+    VALUES
+    ("LS4PSXUNUM", "Metal Camping Mug", "You probably don't go camping that often but this is better than plastic cups.", "/static/img/products/camp-mug.jpg", "cookware");
+
+INSERT INTO price
+    (product_id, currencyCode, units, nanos)
+    VALUES
+    ("LS4PSXUNUM", "USD", 24, 330000000);
+
+INSERT INTO products
+    (product_id, item_name, description, picture_path, categorise_list)
+    VALUES
+    ("9SIQT8TOJO", "City Bike", "This single gear bike probably cannot climb the hills of San Francisco.", "/static/img/products/city-bike.jpg", "cycling");
+
+INSERT INTO price
+    (product_id, currencyCode, units, nanos)
+    VALUES
+    ("9SIQT8TOJO", "USD", 789, 500000000);
+
+INSERT INTO products
+    (product_id, item_name, description, picture_path, categorise_list)
+    VALUES
+    ("6E92ZMYYFZ", "Air Plant", "Have you ever wondered whether air plants need water? Buy one and figure out.", "/static/img/products/air-plant.jpg", "gardening");
+
+INSERT INTO price
+    (product_id, currencyCode, units, nanos)
+    VALUES
+    ("6E92ZMYYFZ", "USD", 12, 300000000);
\ No newline at end of file

db/tidb/svc.yaml

+apiVersion: v1
+kind: Service
+metadata:
+  name: basic-tidb-external
+  namespace: tidb-cluster
+  labels:
+    app.kubernetes.io/component: tidb
+    app.kubernetes.io/instance: basic
+    app.kubernetes.io/managed-by: tidb-operator
+    app.kubernetes.io/name: tidb-cluster
+    app.kubernetes.io/used-by: end-user
+spec:
+  ports:
+    - name: mysql-client
+      protocol: TCP
+      port: 4000
+      targetPort: 4000
+      nodePort: 23333
+    - name: status
+      protocol: TCP
+      port: 10080
+      targetPort: 10080
+  selector:
+    app.kubernetes.io/component: tidb
+    app.kubernetes.io/instance: basic
+    app.kubernetes.io/managed-by: tidb-operator
+    app.kubernetes.io/name: tidb-cluster
+  type: NodePort
+  sessionAffinity: None
+

db/tidb/tidb-cluster.yaml

+# IT IS NOT SUITABLE FOR PRODUCTION USE.
+# This YAML describes a basic TiDB cluster with minimum resource requirements,
+# which should be able to run in any Kubernetes cluster with storage support.
+apiVersion: pingcap.com/v1alpha1
+kind: TidbCluster
+metadata:
+  name: basic
+  namespace: tidb-cluster
+spec:
+  version: v5.3.0
+  timezone: UTC
+  pvReclaimPolicy: Retain
+  enableDynamicConfiguration: true
+  configUpdateStrategy: RollingUpdate
+  discovery: {}
+  helper:
+    image: busybox:1.34.1
+  pd:
+    baseImage: pingcap/pd
+    maxFailoverCount: 0
+    replicas: 1
+    # if storageClassName is not set, the default Storage Class of the Kubernetes cluster will be used
+    storageClassName: nfs-client
+    requests:
+      storage: "1Gi"
+    config: {}
+  tikv:
+    baseImage: pingcap/tikv
+    maxFailoverCount: 0
+    # If only 1 TiKV is deployed, the TiKV region leader
+    # cannot be transferred during upgrade, so we have
+    # to configure a short timeout
+    evictLeaderTimeout: 1m
+    replicas: 1
+    # if storageClassName is not set, the default Storage Class of the Kubernetes cluster will be used
+    storageClassName: nfs-client
+    requests:
+      storage: "1Gi"
+    config:
+      storage:
+        # In basic examples, we set this to avoid using too much storage.
+        reserve-space: "0MB"
+      rocksdb:
+        # In basic examples, we set this to avoid the following error in some Kubernetes clusters:
+        # "the maximum number of open file descriptors is too small, got 1024, expect greater or equal to 82920"
+        max-open-files: 256
+      raftdb:
+        max-open-files: 256
+  tidb:
+    baseImage: pingcap/tidb
+    maxFailoverCount: 0
+    replicas: 1
+    service:
+      type: ClusterIP
+    config: {}

db/tidb/tidb-monitor.yaml

+apiVersion: pingcap.com/v1alpha1
+kind: TidbMonitor
+metadata:
+  name: basic
+  namespace: tidb-cluster
+spec:
+  clusters:
+  - name: basic
+  prometheus:
+    baseImage: prom/prometheus
+    version: v2.18.1
+  grafana:
+    baseImage: grafana/grafana
+    version: 7.5.7
+  initializer:
+    baseImage: uhub.service.ucloud.cn/pingcap/tidb-monitor-initializer
+    version: v5.1.1
+  reloader:
+    baseImage: uhub.service.ucloud.cn/pingcap/tidb-monitor-reloader
+    version: v1.0.1
+  imagePullPolicy: IfNotPresent

docs/development-principles.md

+# Development Principles
+
+> **Note:** This document outlines guidances behind some development decisions
+> behind the Hipster Shop demo application.
+
+### Minimal configuration
+
+Running the demo locally or on GCP should require minimal to no
+configuration unless absolutely necessary to run critical parts of the demo.
+
+Configuration that takes multiple steps, especially such as creating service
+accounts should be avoided.
+
+### App must work well outside GCP
+
+Demo application should work reasonably well when it is not deployed to GCP
+services. The experience of running the application locally or on GCP should
+be close.
+
+For example:
+- OpenCensus prints the traces to stdout when it cannot connect to GCP.
+- Stackdriver Debugging tries connecting to GCP multiple times, eventually gives
+  up.
+
+### Running on GCP must not reduce functionality
+
+Running the demo on the GCP must not reduce/lose any of the capabilities
+developers have when running locally.
+
+For example: Logs should still be printed to stdout/stderr even though logs are
+uploaded to Stackdriver Logging when on GCP, so that developers can use "kubectl
+logs" to diagnose each container.
+
+### Microservice implementations should not be complex
+
+Each service should provide a minimal implementation and try to avoid
+unnecessary code and logic that's not executed.
+
+Keep in mind that any service implementation is a decent example of “a GRPC
+application that runs on Kubernetes”. Keeping the source code short and
+navigable will serve this purpose.
+
+It is okay to have intentional inefficiencies in the code as they help
+illustrate the capabilities of profiling and diagnostics offerings.

hack/README.md

+## `hack/`
+
+This directory provides scripts for building and pushing Docker images, and tagging new demo
+releases.
+
+### env variables
+
+- `TAG` - git release tag / Docker tag.
+- `REPO_PREFIX` - Docker repo prefix to push images. Format: `$user/$project`.  Resulting images will be of the
+  format `$user/$project/$svcname:$tag` (where `svcname` = `adservice`, `cartservice`,
+  etc.)
+
+### scripts
+
+1. `./make-docker-images.sh`: builds and pushes images to the specified Docker repository.
+2. `./make-release-artifacts.sh`: generates a combined YAML file with image $TAG at:
+   `./release/kubernetes-manifests/demo.yaml`.
+3. `./make-release.sh`: runs scripts 1 and 2, then runs `git tag` / pushes updated manifests to master.

hack/license_header.txt

+# Copyright 2018 Google LLC
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+#      http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.

hack/make-docker-images.sh

+#!/usr/bin/env bash
+
+# Copyright 2019 Google LLC
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+#      http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+# Builds and pushes docker image for each demo microservice.
+
+set -euo pipefail
+SCRIPTDIR="$( cd "$( dirname "${BASH_SOURCE[0]}" )" && pwd )"
+
+log() { echo "$1" >&2; }
+
+TAG="${TAG:?TAG env variable must be specified}"
+REPO_PREFIX="${REPO_PREFIX:?REPO_PREFIX env variable must be specified}"
+
+while IFS= read -d $'\0' -r dir; do
+    # build image
+    svcname="$(basename "${dir}")"
+    image="${REPO_PREFIX}/$svcname:$TAG"
+    (
+        cd "${dir}"
+        log "Building: ${image}"
+        docker build -t "${image}" .
+
+        log "Pushing: ${image}"
+        docker push "${image}"
+    )
+done < <(find "${SCRIPTDIR}/../src" -mindepth 1 -maxdepth 1 -type d -print0)
+
+log "Successfully built and pushed all images."

hack/make-release-artifacts.sh

+#!/usr/bin/env bash
+
+# Copyright 2019 Google LLC
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+#      http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+# This script compiles manifest files with the image tags and places them in
+# /release/...
+
+set -euo pipefail
+SCRIPTDIR="$( cd "$( dirname "${BASH_SOURCE[0]}" )" && pwd )"
+[[ -n "${DEBUG:-}" ]] && set -x
+
+log() { echo "$1" >&2; }
+
+TAG="${TAG:?TAG env variable must be specified}"
+REPO_PREFIX="${REPO_PREFIX:?REPO_PREFIX env variable must be specified}"
+OUT_DIR="${OUT_DIR:-${SCRIPTDIR}/../release}"
+
+print_license_header() {
+    cat "${SCRIPTDIR}/license_header.txt"
+    echo
+}
+
+print_autogenerated_warning() {
+    cat<<EOF
+# ----------------------------------------------------------
+# WARNING: This file is autogenerated. Do not manually edit.
+# ----------------------------------------------------------
+
+EOF
+}
+
+# define gsed as a function on Linux for compatibility
+[ "$(uname -s)" == "Linux" ] && gsed() {
+    sed "$@"
+}
+
+read_manifests() {
+    local dir
+    dir="$1"
+
+    while IFS= read -d $'\0' -r file; do
+        # strip license headers (pattern "^# ")
+        awk '
+        /^[^# ]/ { found = 1 }
+        found { print }' "${file}"
+
+        echo "---"
+    done < <(find "${dir}" -name '*.yaml' -type f -print0)
+}
+
+mk_kubernetes_manifests() {
+    out_manifest="$(read_manifests "${SCRIPTDIR}/../kubernetes-manifests")"
+
+    # replace "image" repo, tag for each service
+    for dir in ./src/*/
+    do
+        svcname="$(basename "${dir}")"
+        image="$REPO_PREFIX/$svcname:$TAG"
+
+        pattern="^(\s*)image:\s.*$svcname(.*)(\s*)"
+        replace="\1image: $image\3"
+        out_manifest="$(gsed -r "s|$pattern|$replace|g" <(echo "${out_manifest}") )"
+    done
+
+    print_license_header
+    print_autogenerated_warning
+    echo "${out_manifest}"
+}
+
+mk_istio_manifests() {
+    print_license_header
+    print_autogenerated_warning
+    read_manifests "${SCRIPTDIR}/../istio-manifests"
+}
+
+main() {
+    mkdir -p "${OUT_DIR}"
+    local k8s_manifests_file istio_manifests_file
+
+    k8s_manifests_file="${OUT_DIR}/kubernetes-manifests.yaml"
+    mk_kubernetes_manifests > "${k8s_manifests_file}"
+    log "Written ${k8s_manifests_file}"
+
+    istio_manifests_file="${OUT_DIR}/istio-manifests.yaml"
+    mk_istio_manifests > "${istio_manifests_file}"
+    log "Written ${istio_manifests_file}"
+}
+
+main

hack/make-release.sh

+#!/usr/bin/env bash
+
+# Copyright 2019 Google LLC
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+#      http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+# This script creates a new release by:
+# - 1. building/pushing images
+# - 2. injecting tags into YAML manifests
+# - 3. creating a new git tag
+# - 4. pushing the tag/commit to master.
+
+set -euo pipefail
+SCRIPTDIR="$( cd "$( dirname "${BASH_SOURCE[0]}" )" && pwd )"
+[[ -n "${DEBUG:-}" ]] && set -x
+
+log() { echo "$1" >&2; }
+fail() { log "$1"; exit 1; }
+
+TAG="${TAG:?TAG env variable must be specified}"
+REPO_PREFIX="${REPO_PREFIX:?REPO_PREFIX env variable must be specified e.g. gcr.io\/google-samples\/microservices-demo}"
+
+if [[ "$TAG" != v* ]]; then
+    fail "\$TAG must start with 'v', e.g. v0.1.0 (got: $TAG)"
+fi
+
+# build and push images
+"${SCRIPTDIR}"/make-docker-images.sh
+
+# update yaml
+"${SCRIPTDIR}"/make-release-artifacts.sh
+
+# create git release / push to new branch
+git checkout -b "release/${TAG}"
+git add "${SCRIPTDIR}/../release/"
+git commit --allow-empty -m "Release $TAG"
+log "Pushing k8s manifests to release/${TAG}..."
+git tag "$TAG"
+git push --set-upstream origin "release/${TAG}"
+git push --tags
+
+log "Successfully tagged release $TAG."

helm-chart/templates/adservice.yaml

@@ -45,10 +45,11 @@ spec:
         # - name: DISABLE_TRACING
         #   value: "1"
         - name: JAEGER_HOST
+          #  value: "jaeger-collector"
           value: "jaeger-collector.observability.svc.cluster.local"
         - name: ZIPKIN_PORT
           value: "9411"
-          # value: "14268"
+       #   value: "14268"
         - name: POD_IP
           valueFrom:
             fieldRef:
